Карта контрольная ANALOG WAY LivePremier, ACC-AQL-MVR-DP

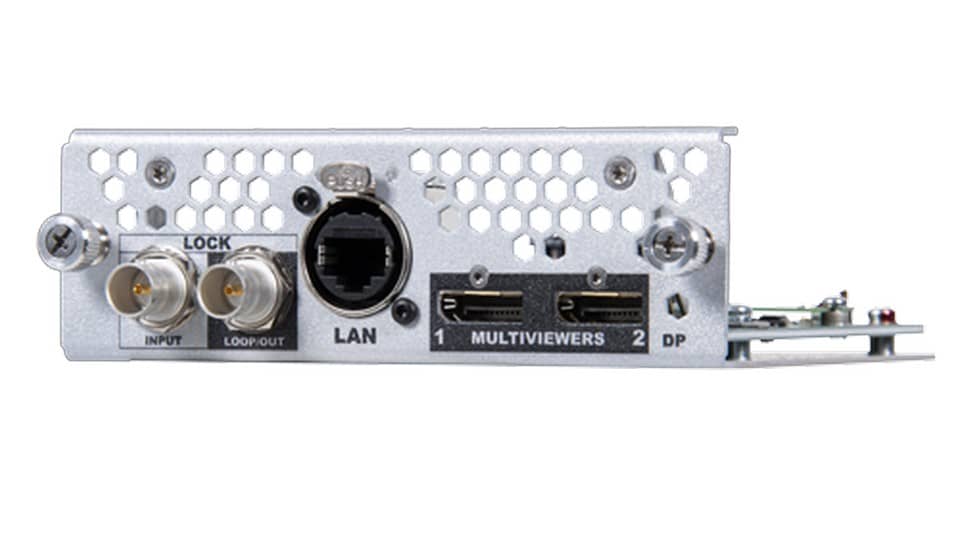

Control card with two DisplayPort 1.2 multiviewer ports The Analog Way ACC-AQL-MVR-DP is a field swappable card designed to work with any LivePremier™ live presentation switcher and to be used instead of the standard Control card with HDMI 2.0 multiviewer outputs. Similarly equipped with a gigabit ethernet interface for remote control and a 32GB SSD (Solid-State Drive) to store user configuration, this card contains two DisplayPort 1.2 multiviewer outputs supporting HDCP 1.4 and HDCP2.2. These outputs can be configured as a single 4K60 multiviewer or two 4K30 multiviewers. Moreover, they can be connected to a DPH104 video processor (ref. DPH104) to feed up to eight Full HD displays. A frame-lock input and its loop through output are available for a perfect synchronization between the inputs and outputs of your LivePremier unit. Key features: - LAN interface for remote control - Two DisplayPort 1.2 multiviewer output ports - Frame-lock input and loop through output with BNC connectors - SSD for user configuration storage - Field swappable card (not hot swappable) - Up to 4K60 4:4:4 - Supports 1 multiviewer output at 4K60 or 2 multiviewer outputs at 4K30 - EDID management
