Карта выходов ANALOG WAY LivePremier, ACC-AQL-OUT-HDMI-FBR

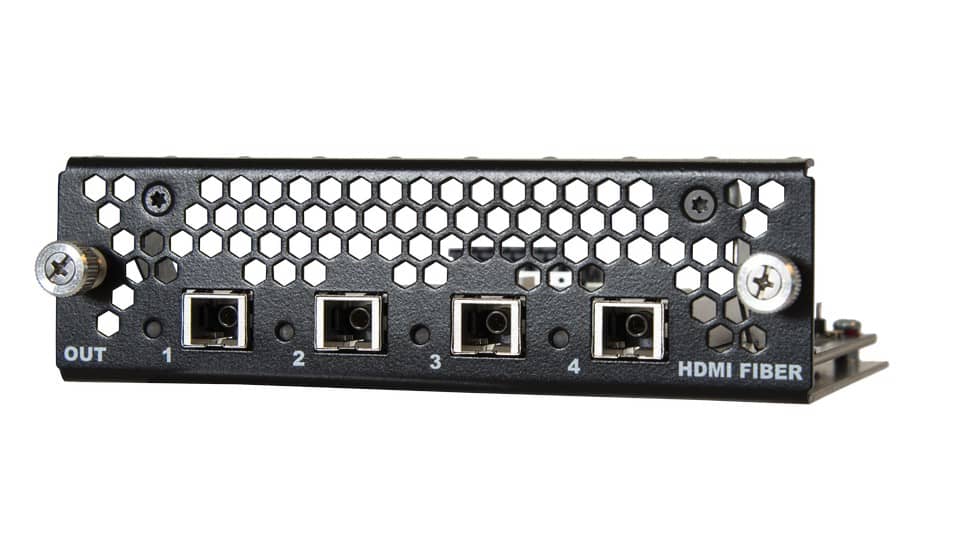

Плата на 4 выхода HDMI 2.0 по оптоволокну The Analog Way ACC-AQL-OUT-HDMI-FBR is a field swappable output card equipped with four fiber optical ports and designed to work with any LivePremier™ live presentation switcher. Each output port can transfer uncompressed HDMI 2.0 class 4K signal with embedded audio to up to 600m (~2000 ft.) or a FullHD signal to up to 2500m (~8200 ft.) over one multimode fiber cable. Each output port supports resolutions up to 4K60 8 bits 4:4:4 or 4K60 10 bits 4:2:2 as well as custom output formats such as 8192?1080@60Hz. The card supports up to 8 embedded audio channels per output and features advanced HDCP 1.4 and 2.2 handshake as well as HDR compatibility. Key features: - Four optical fiber output ports (standard SC connectors) - Fully compatible with HDMI 2.0 - Uncompressed video up to 18 Gbps bandwidth per port - Field swappable card (not hot swappable) - True 4K60 4:4:4 performance on every output port - Supports 4K60 output as single, double or quad ports - Connector status LEDs for easy troubleshooting - HDR compliant with HDR10 and HLG - High Frame Rate up to 144Hz - Supports up to 8 embedded audio channels per output (PCM) - EDID management
