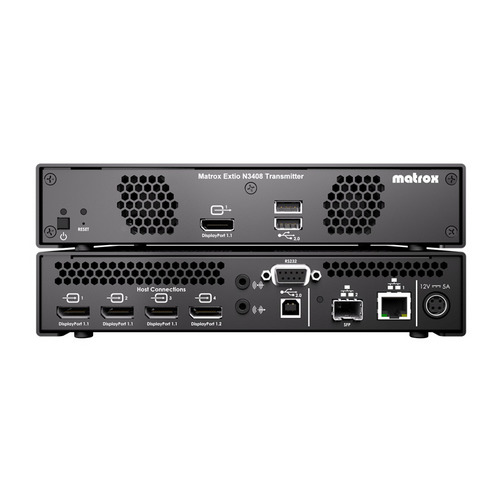

Передатчик по витой паре DisplayPort, USB, RS-232, аудио MATROX Extio 3 N3408, XTO3-N3408TX

Matrox® Extio N3408 are the world’s first IP KVM extenders to deliver 4Kp60 4:4:4 UHD performance or quad-monitor capabilities over standard Gigabit Ethernet at unprecedented low bitrates. Extio N3408 can be configured as a point-to-point or networked KVM extender, delivering multiple video, keyboard, mouse, USB 2.0, and audio signals using a single fiber optic or copper cable. Ready compatibility with standard network switches significantly diminishes the total cost of ownership to deliver a scalable KVM matrix switching solution. Connections to Host System • 1x DisplayPort 1.2 video input connector • 3x DisplayPort 1.1 video input connectors • 1x USB 2.0 Type B • Line in 3.5 mm, line out 3.5 mm, RS-232 9-pin D-type (supported in certain configurations) Connections to Local Devices1 • 1x DisplayPort 1.1 • 2x USB 2.0 Type A Link • 1x RJ45 network port • 1x SFP cage (supports SFP multi-mode or single-mode transceiver, sold separately) General • Embedded digital audio through DisplayPort, with option to de-embed digital audio on the receiver unit • Lockable power connector, external 12V power supply unit • Standalone or rack-mountable unit (1U Ѕ R) • Status LED indicators • On/off and recessed reset button
