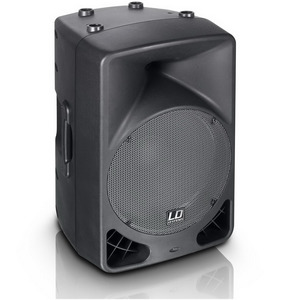

Активная АС 500Вт (RMS), 15", 48Гц-20кГц, 130дБ серия OXID LD SYSTEMS LDOXID15A

The LD Systems Oxid 15A is an active 15" full-range speaker with digital signal processing and a total output power of 1000 watts Peak (500 watts RMS) for compact PAs, monitoring, and installations. Three selectable DSP presets optimize the frequency response of the OXID15A for various spheres of application: linear frequency response for normal operation or audio curve corrected response for low volumes or as a floor monitor. Reliable functioning is ensured by protection circuits against overcurrent and short-circuiting and a digital limiter; a switchable ground lift eliminates possible ground loop hum. type: active design: DSP controlled low/mid driver dimensions: 15 " low/mid driver dimensions (mm): 381 mm low/mid driver magnet: Neodymium low/mid driver brand: Custom made low/mid driver voice coil: 2,5 " low/mid driver voice coil: 63,5 mm tweeter dimensions: 1" tweeter dimensions (mm): 25,4 mm tweeter magnet: Ceramic tweeter brand: Custom made tweeter voice coil: 1,75" tweeter voice coil (mm): 44.4 mm amplifier: Class D / Class AB dispersion (H x V): 90 x 45° Power (RMS): 500 W Power (Peak): 1000 W frequency response: 48 - 20000 Hz crossover frequency: 1.5 kHz max. SPL (continuous): 124 dB max. SPL (peak): 130 dB integrated media player: no protection circuits: DSP based limiter, over-current, short circuit controls: On/ Off, volume, DSP presets, ground lift, input switch: mic / line display: Power, Signal, Limit line inputs: 1 line input connectors: XLR line outputs: 1 line output connectors: XLR power supply: switch mode power supply operating voltage: 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable cabinet material: PP cabinet construction: Bassreflex monitor angle: 45° width: 396 mm height: 664 mm depth: 400 mm features: two handles, 36mm flange, 6 x M10 flying points, monitor angle, switchable DSP presets (monitor, flat, loudness), switchable ground lift
