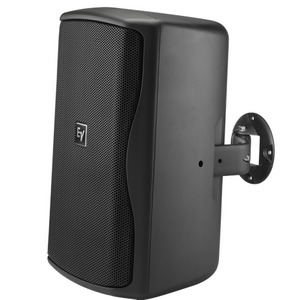

Акустическая система настенная ELECTRO-VOICE Zx1i-100

Freq. Response1 (-3 dB): 60 Hz - 20 kHz Freq. Range1 (-10 dB): 48 Hz - 20 kHz Rec. Hipass Frequency: 40 Hz Axial Sensitivity1 (90°): (100°): 94 dB (1W/1m) 92 dB (1W/1m) Max Calculated SPL (90°): (100°): 123 dB 121 dB Horizontal Coverage: 90° or 100° Vertical Coverage: 50° or 100° Enclosure Rotation: +/-35° Enclosure Sweep: +/-45° Rated System Power: 200W Cont.2, 400W Prog., 800W Peak LF Transducer: EV8L, 8 in (203mm) Driver HF Transducer: DH2005, 1 in. (25.4mm) Exit Compression Driver Crossover Frequency: 1.7 kHz Nominal Impedance: 8 Ohms Minimum Impedance: 6 Ohms "T" Version Wattage Taps: 70V - 6, 12.5, 25, 50, 100, 8 Ohm bypass 100V - 12.5, 25, 50, 100, 8 Ohm bypass Connectors: 4-Pin Phoenix Connector Enclosure Material: High Impact Polymer Suspension: Integrated QuickSAMTM Heavy-Duty Strong-Arm Mounting Bracket Grille: Polyester Powder Coated, 18GA Galvanized Steel Dim (H x W x D): 451mm x 282mm x 263mm (17.75" x 11.12" x 10.35") Net Weight: 8.4 kg (18.5 lbs) without Transformer 10.4 kg (23.0 lbs) with Transformer Shipping Weight: 10.2 kg (22.5 lbs) without Transformer 12.3 kg (27.0 lbs) with Transformer
