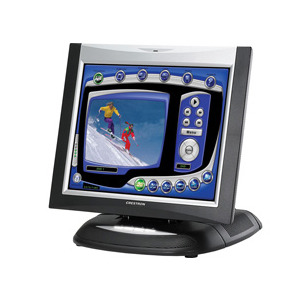

Панель управления 15.0" 1024x768 настольная CRESTRON TPS-15B

Touchscreen Display: Display Type TFT Active matrix color LCD Size 15 inch (38.1 cm) diagonal Aspect Ratio 4:3 XGA Resolution 1024 x 768 pixels Brightness 350 nits (cd/m2) Contrast 700:1 Color Depth 24-bit, 16.7M colors Illumination Backlit fluorescent Viewing Angle ±85° horizontal, ±85° vertical Touchscreen Resistive membrane Processor: CPU 32-bit Freescale ColdFire® Microprocessor Memory: DDR RAM 128 MB, Flash 64 MB, Compact Flash Accepts up to 4GB Type II CF (not included), Maximum Project Size 160 MB Graphic Engine: Isys engine, 24-bit non-palette graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, DNav dynamic menu objects, dynamic graphics, Windows SideShow enabled, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing, remote annotation. Ethernet: 10BaseT/100BaseTX, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, IEEE 802.3U compliant. Video: Signal Types - Auto-detecting composite, S-Video, or component. Formats NTSC 480i or PAL 576i. Color Depth 24-bit, 16.7M colors Features: Single-window scalable to full-screen, input switching between QM and VIDEO inputs, gamma correction, line doubling Audio: Hardware Features Built-in microphone and amplified speakers, stereo headphone output, internal volume control and audio mixer. Audio Feedback (WAV) 8-bit PCM, mono, 8 kHz sampling rate. D-A Conversion (QM only) 24-bit, 48 kHz. Amplification Mono, 5 Watts x 2 Buttons: 4 х Backlit “hard key” buttons, programmable. 1 х Miniature recessed hard reset button, reboots the touchpanel.
