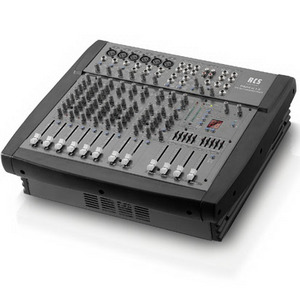

Микшерный пульт активный 2x300(4), 2x200(8), 2EQ, DSP RCS AUDIO PMX-614

Technical Data PMX-614 Input sensitivity MIC IN: -55dBm (1.38mV), 50-600 ohms LINE IN: -35dBm (13.8mV), 600 ohms Stereo In: 0 dBu (775mV), 600ohms Output power 2x 300/450W at 4 ohms, 2x 200/340W at 8 ohms Output sensitivity Tape-Out (L/R): 600 ohms, -10dBu (245mV) all other outputs: 600 ohms, +4dBu (1,23V) Signal-to-noise ratio better than 97dB Crosstalk better than 90dB Frequency response 20Hz – 20kHz +1 / -2dB Channel equalizer Highs: 12kHz shelving ±15dB Mids: 2,5kHz peaking ±12dB Mids for CH 1-3 semi-parametric 100Hz-8kHz ±12dB Lows: 80Hz shelving ±15dB Low cut: 18dB/Okt.@ 75Hz Phantom Power +48V DC Power supply 220V – 240V/AC, 50~60 Hz Input power approx 1.200 W Dimensions (W x H x D); Weight 470 x 405 x 148 mm; 16.0 kg
