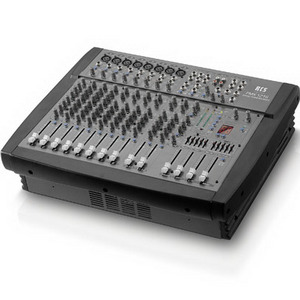

Микшерный пульт активный 2x600(4), 2x350(8), 2EQ, DSP RCS AUDIO PMX-1216

Technical Data PMX-1216 Input sensitivity MIC IN: -55 dBm (1.38 mV), 50-600 ohms LINE IN: -35 dBm (13.8 mV), 600 ohms Stereo in: 0 dBu (775 mV), 600 ohms Output power 2x 600/900W at 4 ohms, 2x 350/520W at 8 ohms Output sensitivity Main out L/R, mono out, aux send 1/2 and monitor out 600 ohms, +4 dBu (1.23 V) Tape out (L/R) 600 ohms, -10 dBu (245 mV) Signal-to-noise ratio better than 97 dB Crosstalk better than 90 dB Frequency response 20 Hz – 20 kHz +1 / -2 dB Channel equalizer Highs: 12 kHz shelving ±15 dB Mids: 2.5 kHz peaking ±12 dB Mids for CH 1-3 semi-parametric 100 Hz-8 kHz ±12 dB Lows: 80 Hz shelving ±15 dB Low cut: 18 dB / oct. @ 75 Hz Phantom power +48 V DC Power supply 220V – 240V/AC, 50~60 Hz Input power approx 2.200 W Dimensions (W x H x D) ;Weight 515 x 405 x 148 mm; 16.0 kg
