Кабель силовой 5х2.5 мм2 ADAM HALL KCH07RNF5G250

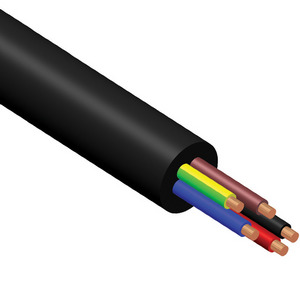

H07RN-F3G1.5, H07RN-F3G2.5 and H07RN-F5G2.5 are high quality standard H07RN-F power cables for indoor and outdoor, fixed or mobile use. The cables are made of 3 (H07RN-F3...) or 5 (H07RN-F5...) soft rubber insulated conductors, with a diameter of 3 mm (...G1.5) or 3.5 mm (...G2.5). Packed in a highly flexible rubber outer jacket of respectivly 9 mm , 11mm and 14 mm. These cables are resistant to flame, acids, and oil penetration and can be worked under all weather and ambient conditions. This offers you a cable that can be used in a wide variety of applications. MECHANICAL DATA: Temperature range fixed installation: Fixed installation: -40° C to +80° C Flexible installation: -25° C to +60° C Bending radius : Fixed installation: 6 x outer diameter Flexible installation: 8 x outer diameter TECHNICAL DATA: Art No.: KCHO7RNF5G250 Type of cable: Power cable Inner conductor: 5 pcs BC 80 x 0.2 mm Inner conductor section: 5 x 2.5 mm? Inner conductor color: Green & yellow/blue/brown/black/red Outer jacket: Rubber Outer jacket color: Black Outer jacket diameter: O 14 mm Type of packing: Wooden reel for 100 meter Lead resistance: 0,66 Ohm - 100 meter Max. operation voltage : 450 V Max. current: 20 Amp. Approval : CE - VDE
