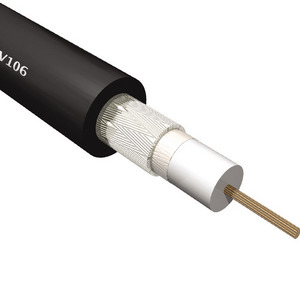

Видеокабель 75 Ом, 0.26 мм, медная жила, PVC, диам. 6 мм, черный ADAM HALL ProCab Series CXV 106, KCCXV106

CXV106 is a polyvalent video cable with a 23-strand copper conductor, foamed polyethylene dielectric and dual shielding (Aluminium-mylar + tightly braid tinned copper). It has excellent and stable electrical performance and is a perfect choice for critical analog and digital video applications like among others post-production and broadcast. MECHANICAL DATA: Temperature range fixed installation: Fixed installation: -40° C to +80° C Flexible installation: -15° C to +60° C Bending radius : Fixed installation: 6 x outer diameter Flexible installation: 8 x outer diameter TECHNICAL DATA: Art No.: KCCXV106 Type of cable: Coax cable Inner conductor: BC 23 x 0,12 mm Inner conductor section: 0,26 mm? Isolation: Foamed PE , O 3,1 mm Shielding 1: Aluminium mylar Shielding 2: TC braided 16 x 7 x 0.12 mm Shielding %: 100% Outer jacket: Flexible PVC Outer jacket color: black Outer jacket dimensions: O 6 mm Printing color: white Printing text: Procab CXV 106 Type of packing: reel for 100 meter Coax lead resistance: 8 Ohm - 100 meter Coax shield resistance: 1,5 Ohm - 100 meter Coax shield capacitance 1 KHz: 58 pF - meter Coax lead impedance: 75 Ohm Coax lead attenuation 10 MHz: 0.065 dB - meter Coax voltage resistance: 300 ACV - 15 sec Coax isulation resistance: 10 MOhm/m at DCV 250 - 1min Rated voltage: 30 Volt Velocity of propagation: 83,50 % ATTENUATION DATA: 5 Mhz: 0,91 dB/100 ft. 3,00 dB/100 m 10 Mhz: 1,31 dB/100 ft. 4,30 dB/100 m 50 Mhz: 2,53 dB/100 ft. 8,30 dB/100 m 100 Mhz: 3,44 dB/100 ft. 11,30 dB/100 m 300 Mhz: 5,94 dB/100 ft. 19,50 dB/100 m 500 Mhz: 7,89 dB/100 ft. 25,90 dB/100 m 1 Ghz: 12,20 dB/100 ft.
