Technische Daten MAX-104
Eingange MIC: -60 dB / 600 Ohm, symmetrisch
LINE: -10 dB / 10 kOhm, symmetrisch
Ausgange MASTER: +4 dBu /600 Ohm, symmetrisch
REC: -10 dBu /10 kOhm, unsymmetrisch
Frequenzgang 20 – 20.000 Hz, besser als -3 dB
Signal-/Rauschabstand besser als 80 dB
Cross Talk besser als 75 dB
Klirrfaktor besser als 0,1 %
Stromversorgung AC 230 V, (50 – 60 Hz), DC 24 V
Leistungsaufnahme 15 W
Abmessungen (B x H x T) 483 x 88 x 280 mm, (19”, 2 HE)
Gewicht 5 kg
Features
All input channels have 4 switches on the front panel to route the signals on to 4 outputs.
Each input channel has a separate signal LED indicator as well as a blasting control.
All input channels have XLR sockets. Inputs 7 – 10 are additionally equipped with RCA sockets for line signals.
All MIC inputs have phantom power (+24 V DC). This means that both electret condenser microphones and balanced dynamic microphones can be connected to the XLR MIC inputs.
Each input has a MIC/LINE switch for impedance adjustment purposes
All 4 output-channels can be controlled individually on the front panel of the device and are equipped with 3-band output-equalizer. Additionally 4 outputs (REC-OUT) with RCA sockets are available.
Each output channel has an individual signal LED indicator and a blasting control.
The device operates with a low-current switching power supply.
Apart from the numerous features such as balanced inputs and outputs, the 10-channel mixer preamplifier offers excellent sound characteristics, ease of installation and operation.
Description

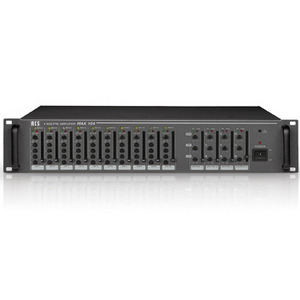

The MAX-104 with matrix functions is a professional 10-channel mixer preamplifier for general sound reinforcement. It also comes with 10 audio inputs and a gauge controller and an output selector switch for 4 outputs (output 1 – 4) Additionally, all 10 input channels have a MIC-LINE selector switch. The device operates both on 230 V AC mains power and on 24 V DC power (e.g. emergency power supply)
