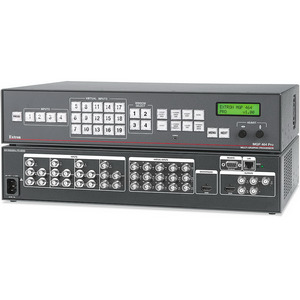

Видеопроцессор 4-оконный EXTRON MGP 464 Pro, 60-1259-01

•Combines HDMI, 3G-SDI, high resolution RGB, component, S-video, and composite input sources into four windows on a single display •Inputs: Four universal analog video inputs on BNCs for RGBHV up to 1920x1200 and 2K, component video up to 1080p/60 HDTV, S-video, or composite video; 15 virtual video inputs on BNCs accept various combinations of composite video, S-video, and component video sources; live background input on HDMI; and optional inputs - four HDMI or two 3G-SDI/HD-SDI and two HDMI •Outputs: Scaled picture-in-picture output on HDMI and BNCs as RGBHV, RGBS, RGsB, or HD component video •RGB, HDTV component video, and HDCP-compliant HDMI output •Optional HDMI and 3G-SDI/HD-SDI inputs •HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display •Key Minder® continuously verifies HDCP compliance for quick, reliable switching •Selectable output rates from 640x480 to 1920x1200, including HDTV 1080p/60 and 2K •Picture-in-picture adjustments for window positioning, sizing, zoom, and priority; background and window border color selection •Graphic Still Store enables use of screen captures or uploaded graphics as background images •Background images can be used to create themed multimedia presentations •Live video background from a dedicated HDMI source •EDID Emulation provides selectable resolutions and refresh rates to ensure reliable operation •Cascade MGP 462xi Pro or MGP 464 Pro units for additional windows •Window transition effects including dissolves, wipes, and cuts •Virtual video inputs allow wide-ranging combinations of composite video, S-video, and standard definition component video sources •True 19x4 input matrix switcher •Auto-Image™ setup •Image freeze control •Text overlay for window caption labeling •Picture controls for each window, including color, tint, brightness, contrast, and detail •User presets •128 window presets for multiple window configurations •3:2 NTSC and 2:2 PAL pulldown detection
