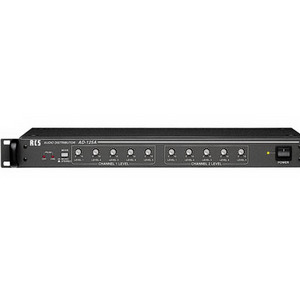

Усилитель-распределитель 2x5/1x10 дистрибьютор линейного сигнала RCS AUDIO AD-125 A

XLR connector Technical data AD-125 A Input impedance 0.775 V (0 dB), 15 kohms, balanced on XLR Output impedance 0.775 V (0 dB), 600 ohms, balanced on XLR Frequency response less than -0.5 dB (20 Hz - 20 kHz) Signal-to-noise ratio better than 68 dB THD less than 0.05 % (20 Hz - 20 kHz) Crosstalk attenuation better than 75 dB Power supply 230 V AC (50/-60 Hz), 24 V DC Power consumption 6.5 W Dimensions (W x H x D) 483 x 44 x 200 mm, (19? 1 RU) Weight approx. 2.9 kg ach of the 10 outputs can be controlled separately. An LED overmodulation indicator is provided for the two input channels. The device is incorporated in a 19? housing with an overall height of 1 RU. Apart from the numerous features such as balanced inputs and outputs, the audio distribution amplifier offers excellent sound characteristics. It is also distinguished by its extreme ease of installation and operation.
