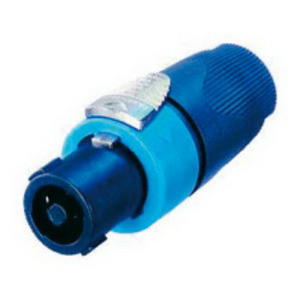

Разъем кабельный speakON 4 контактный ADAM HALL NEUTRIK, NL4FX

4 pole cable connector, chuck type strain relief, dark grey bushing. The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination. Features & Benefits Current rating 40 A rms continuous Up to 50 A audio signal, duty cycle 50% Only 3 parts, easy to assemble High impact materials - long-lasting and reliable Easy and extremely precise locking system "Quick Lock" Improved grip on latch 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D. Color coding possible Improved screw-type termination for highest pull-out force Integrated design guarantees "Made by Neutrik®" Product Connector Type: Speakon Gender: female Electrical Contact resistance < 2 m? (after lifetime) Dielectric strength 4 kVdc (peak) Insulation resistance > 1 G? (after dampheat) Rated current per contact 40 A rms continuous Rated current per contact 50 A audiosignal, duty cycle 50% Rated voltage 250 V (Insulation) Mechanical Cable O.D. 7 - 14.5 mm Cable retention force ? 220 N (subject to cable O.D. and material) Lifetime > 5000 mating cycles Wire size 4 mm? / 6 mm? (screw type terminals/soldering) Wire size 12 AWG / 10 AWG Wiring screw type terminals or soldering Locking device Quick Lock (latch) Material Bushing Polyamide (PA 6 15% GR) black Contact plating 4 µm Ag Contacts Brass (CuZn39Pb3) Insert PBTP 20 % GR Locking element Zinc diecast (ZnAl4Cu1) Shell PBTP 20 % GR Strain relief Polyacetal (POM) Environmental Approvals UL,cUL Flammability UL 94 HB Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C
