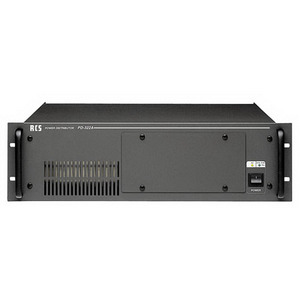

Устройство управления электропитанием 10x1 RCS AUDIO PD-322 A

Technical data PD-322 A DC power distribution 2 x 24 V/1.5 A max. AC power distribution 1 ~ 6: 230 V/7000 W/30 A (switched) 7 ~ 9: 230 V/ max. 115 W each (switched) 1 x: 230 V/ max. 360 W each (unswitched) Power consumption AC: 120 W DC: 24 V/3 A Power supply 230 V mains power Dimensions (W x H x D) 483 x 133 x 380 mm, 3 RU Weight 8 kg Description The AC/DC power distributor is incorporated in a stable housing (3 RU). The use of high-quality components ensures that the continuous load required for audio systems are met.The device serves as a power supply and power distribution in the central 19? rack. It supplies and distributes both 230 V mains power and 24 V DC power. In the case of a power failure, the EP-352 automatic battery charger provides emergency power supply, after it has been activated through a switch contact of the PD-322 power distributor. Features 2 integrated DC power supply units (24 V) with 1.5 A each, for the connection of 24 V devices. The 24 V line is protected against short circuit. All fuses can be accessed through a panel on the front. In order to limit the turn-on current, circuits 1 - 6 are equipped with a turn-on delay. To ensure that an emergency announcement can be made, even when the PD-322A is switched off, a switch-on can be done via a potential free contact, when simultaneously terminal 7 (see manual) is supplied with 24 V. There are 6 switched sockets with an overall maximum rating of 230 V/7000 W/30 A. Furthermore the PD-322A provides 3 switched power outlets with 115 W/230 V each and one none switched 230 V power outlet.
