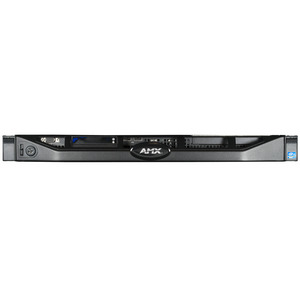

Гейт IP системы цифрового ТВ AMX Vision2 Digital TV Appliance V2-TDS, FG3100-33K

The DTV Gateway enables the Vision2 system to use the Television Distribution System (TDS) as a source for TV content. The three TDS transmitters (DVB-T, DVB-S and QAM/ATSC) can be paired with the DTV Gateway to convert a digital TV signal to a format than can be managed by Vision2. Each DTV Gateway supports up to six transport streams, which can each contain one or multiple channels. COMMON APPLICATION Businesses that want to broadcast over-the-air digital TV signals via a Corporate LAN to displays that are already being used for Vision2. It can also deliver a TV signal to PCs on the LAN. FEATURES •Segments High-Bandwidth Transport Streams – Delivers each channel as a separate multicast stream which can be distributed over a Corporate LAN •Supports Several Video Streams – One DTV Gateway device can support three DVB-T or DVB-S transmitters or six QAM transmitters providing support for up to six transport streams reducing the amount of hardware needed to supply multiple channels •Extends Support of DVB-S and QAM to Vision2 – DTV Gateway allows Vision2 to support additional types of digital video broadcast technologies •Enables Delivery of Live TV to a PC – DTV Gateway can be used without any additional Vision2 hardware to deliver a Television Distribution System signal to PCs •Provides Easy Upgrade Path from TDS to Vision2 – Allows TDS users to easily add the capabilities of Vision2 without having to discard their TDS hardware KIT INCLUDES •1 Vision2 Live Appliance •6 DVB Licenses (FG3101-02L)
