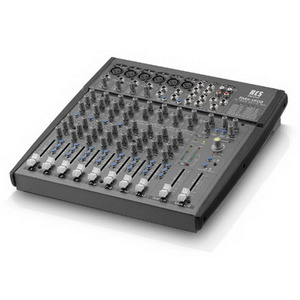

Микшерный пульт универсальный RCS AUDIO 6 mic/line+4 line, FMX-1202

A switchable digital effects board allows adding 16 highgrade effects with an adjustable DSP master to the sum and with a switch to the monitor way also. This DSP is switchable ON/OFF by a foot switch. A mono out jack socket with level control makes another pre-amplified signal output possible. The mixer FMX-1202 FX is designed to be tabletop unit as well as for integration into 19. racks or flight-cases. The 19. mounting angles .RMK-12Ѓh (8 RU) are optionally available. Technical Data FMX-1202 Input sensitivity MIC -55 dBu (mono) 1.3 kohms (balanced) LINE -35 dBu (mono) -20 dBu (stereo) all other inputs >10 kohms Output sensitivity Tape output 1.0 kohms FX-returns or AUX: 10 kohms all other outputs <100 ohms Signal-to-noise ratio .90 dB Crosstalk better than 85 dB Frequency response 20 Hz . 60 kHz +0 / -1.5 dB Channel equalizer Highs: 12 kHz shelving Ѓ}15 dB Mids: 3.0 kHz peaking Ѓ}12 dB Lows: 80 Hz shelving Ѓ}15 dB Low cut: 18 dB/oct.@ 75 Hz Phantom power +48 V DC Power supply 220V . 240V/AC, 50~60 Hz Input power 22 W Dimensions (W x H x D) 305 x 354 x 72 mm
