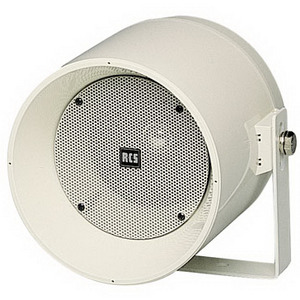

Звуковой прожектор 15(25)Вт 5" 125Гц 109дБ круглый всепог. RCS AUDIO CS-015

Звуковой прожектор, 15-7,5-4W (100V) или 25W (8ohm), 5", 125Hz-16kHz, 109dB, белый круглый outdoor. Technical data CS-015 Load rating (Music power) 15 W (25 W) Transformer tappings at 100 V 15 – 7,5 – 4 W Frequency range 125 – 16.000 Hz SPL at load rating / 1W/1m 109 /96 dB Loudspeaker O (mm) and Impedance 5 1/4", 8 ohm Dimensions (without bracket) O 178 mm x 200 mm (L) Weight, Colour appr. 1,6 kg, cream white These SOUND PROJECTORS feature almost the sound pressure of a horn speaker but have a wide-band such as a dynamic speaker system. Both of them (CS-015 and CS-030) have installed a top-quality "twin-cone"-speaker chassis and a high-quality matching transformer, which are specially equipped for outdoor use.That is why it is also ideally applicable for pretentious and professional voice and music reproduction outside, e.g. outdoor swimming pools, sports fields etc.It is possible to rig up a number of these sound projectors, on top of each other, by using similar phasing of the signal connection. This effects a narrowing of the vertical transmission angle at 1/4/8 kHz, which has the same effect as a column speaker.Of course the CS-015 and CS-030 are also able to be connected at low-impedance. It is only necessary to connect the built-in matching transformer to the appropriate wire bond. Features Both models have a very attractive design and are made of a shock- and scratch-resistant plastic. The colour is creme white, similar to RAL 9001. The impedance matching is done very easily by clamping on the appropriate leads of the connection multi-core. The leads are marked appropriately and cannot be confounded. By simply changing the plug connections on the matching transformer, the speaker can also be used at low-impedance (8 ohms).
