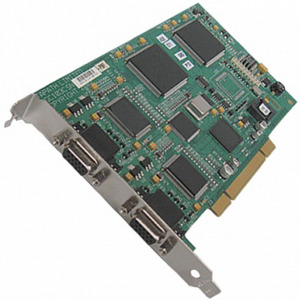

A stand alone PCI plug in video capture card, the VisionRGB-PRO2 captures the display output (e.g. the analogue RGB data) from one source and then displays it as an independent application, on your Windows® desktop. The VisionRGB-PRO2 capture cards have 2 VGA compatible inputs for simultaneously feeding 2 independent data sources directly into your main PC.
The data is then converted on the VisionRGB-PRO2 and displayed as a standard Windows® application on your desktop. All your data in one place and no need for that dedicated monitor.
Board format PCI level 2.1 complaint, half sizing plug-in card 105mm x 170mm
PCI bus master with scatter/ gather DMA providng up to 132 MBytes per second data transfer
Connectors Two VGA D Type connectors
Maximum sample rate 280m pixels per second
Video sampling 24 bits per pixel/ 8:8:8 format
Video capture memory 6MB per channel (updated in real time)
RGB mode support 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Pixel display formats 555, 565 or 888 pixels
Update rate User defined, typically up to 30 updates per second
Video format option RGB plus HSync and VSync (5 wire)
RGB with Sync on green (3 wire)
RGB with composite Sync (4 wire)
Operating system support Windows®7 (x86 & x64), Vista (x86 & x64), Windows®2000, Windows® Server 2003, Windows® XP Professional and Windows® 8
Power requirements: Max current at 12V - 0.20A, Max current at +5V: - 1.30A, Max current -9.40 watts
Operating temperature: 0 - 35 deg C
Storage temperature: -20 - 70 deg C
Relative humidity: 5% to 90% non-condensing
