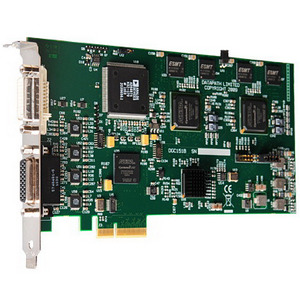

Карта видеозахвата RGB + S-Video (x4) DATAPATH VisionSD4+1

- Four channel SD Video + one channel RGB/DVI/HD video capture card - Four Lane PCI Express interface with a maximum data rate of 650MB/sec for the VisionSD4+1S compared to the VisionSD4+1 at 480MB/sec - maximum analog RGB capture resolution of 2048 x 1536 x 24bit - Maximum DVI capture resolution of 1920 x 1200 x 24bit - HD modes using the supplied DVI/ Component Adapter or DVI/HDMI Adapter (HDCP not supported) - Four SD capture channels for PAL/NTSC, SECAM (composite or S-Video inputs) - On card processor for real time mode and sync detection - Support for multiple cards allowing up to 128 SD capture channels + 32 DVI-I capture channels. (32 cards) - Direct DMA driver software and streaming driver - high quality down scaling - Support for YUV 4:2:2, RGB 5:5:5, 5:6:5 and 8:8:8 video formats - High performance DMA to system memory or direct to graphics memory with scatter gather - Support for separate H/V sync, Composite sync or Sync on Green - Includes WDM streaming drivers and the Datapath Vision application software - Fully integrated with the Datapath Wall Control-red software for video wall applications - Support for Windows XP/Vista/Server 2003/Server 2008/ Windows 7/ Windows 8 - Datapath SDK included for software developers
