The GefenTV HDBaseT Extender for HDMI over one CAT5 uses one CAT-5e/CAT-6a cable to extend 3DTV over 70 meters away from the source. It supports resolutions up to 1080p Full HD and high bit-rate audio formats such as Dolby® TrueHD and DTS-HD® Master Audio.
3D content is supported when a 3D-capable display and 3D source are connected. DVI-D is also supported when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several different commercial displays.
By using standard CAT-5e cables, it makes HDMI signal extensions easier to install within a room or through walls. The Extender's digital transmission uncompressed method insures 100% signal integrity.
Supported HDMI Features:
- Resolutions up to 1080p Full HD
- 12 bit Deep Color
- LPCM 7.1 Audio, Dolby® TrueHD, and DTS-HD® Master Audio?
- 3DTV Pass-through
- CEC Pass-through
- Lip Sync Pass-through
- Extends HDMI up to 70 meters using one CAT-5e cable
- HDCP Compliant
- Uses HDBaseT® Technology
- Locking power supplies
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ:
- Maximum Pixel Clock: 225 MHz

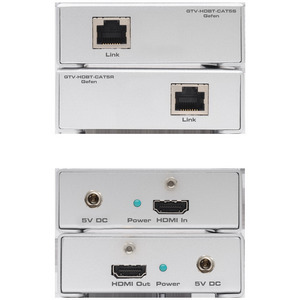

- Video Input Connector (Sender): 1x HDMI Type A 19-pin, female
- Video Output Connector (Receiver): 1x HDMI Type A 19-pin, female
- Link Connector (Sender/Receiver): 1x RJ-45, Shielded
- Indicators (Sender/Receiver): 1x blue Power-On LED
- Power Supplies (Sender/Receiver): 5V DC, Locking
- Power Consumption: 10W (max.) each
- Dimensions (Sender/Receiver W x H x D): 86mm x 33mm x 84mm
- Shipping Weight: 1,4kg
