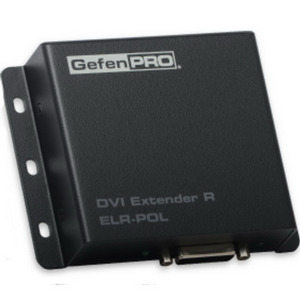

Приемник сигнала DVI-D (витая пара) для GEF-DVI-8ELR-S GEFEN GEF-DVI-ELRPOL-R

The GefenPRO DVI ELR POL Receiver module (GEF-DVI-ELRPOL-R) Receives the Signal from the ELR-POL Extender Sender PCBA and outputs a DVI-D Signal. It allows a single DVI-D signal to be extended up to 330 feet (100 meters). Gefen POL (Power Over Link) technology is used to power the Receiver from the Sender, thus eliminating the need for a separate power supply. Note: Use the GefenPRO 8x DVI ELR-POL Extender PCBA (GEF-DVI-8ELR-S) to complete the Extender System. The GEF-DVI-8ELR-S is sold separately Features:* - Plug-in Sender module for GefenPRO Modular Matrix - Extends DVI up to 330 feet (100 meters) - Supports resolutions up to 1920 x 1200 - Uses Gefen POL (Power Over Line) technology to supply power to the Receiver unit - EDID management provides rapid integration between souce and display - DDC pass-through - LED Indicators for Power, Link Status, and POL Status - Firmware can be updated via IP Technical Specifications: - Maximum Pixel Clock: 165 MHz - Video Output Connector: (1) DVI-I, 29-pin, female (digital only) - ELR Connector: (1) RJ-45, shielded - Dimensions (W x H x D): 110mm x 85mm x 28mm - Shipping Weight: 0.64 kg
