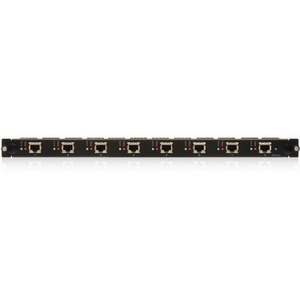

Плата передатчика DVI-D x8 (витая пара) для GEF-DVI-ELRPOL-R GEFEN GEF-DVI-8ELR-S

5The GefenPRO Modular Matrix DVI ELR-POL Sender over CAT-5 can be installed in any one (or all) of the output slots on any GefenPRO Modular Matrix, allowing DVI signals to be extended up to 330 feet (100 meters). Use the GefenPRO DVI ELR Receiver with POL to complete the connection to the display. Gefen POL (Power Over Link) technology supplies power to the Receiver unit without the need for a power supply. ВОЗМОЖНОСТИ ПАРЫ ПЕРЕДАТЧИК_ПРИЕМНИК • Plug-in Sender module for GefenPRO Modular Matrix • Extends DVI up to 330 feet (100 meters) • Supports resolutions up to 1920 x 1200 • Uses Gefen POL (Power Over Link) technology to supply power to the Receiver unit • EDID management provides rapid integration between souce and display • DDC pass-through • LED Indicators for Power, Link Status, and POL Status • Firmware can be updated via IP ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ • Maximum Pixel Clock: 165 MHz МОДУЛЬ ПЕРЕДАТЧИКА: • ELR Connectors: (8) RJ-45, shielded per output (1 per output) • Dimensions (W x H x D): 15.75” x 1” x 10.5” (400mm x 26mm x 267mm) • Shipping Weight: 2 lbs (0.9 kg) МОДУЛЬ ПРИЕМНИКА: • Video Output Connector: (1) DVI-I, 29-pin, female (digital only) • ELR Connector: (1) RJ-45, shielded • Dimensions (W x H x D): 4.3” x 3.4” x 1.1” http://www.gefen.com/pdf/catalogs/infocomm_catalog.pdf
