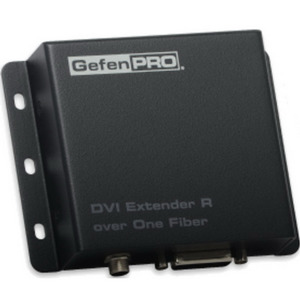

Приемник сигнала DVI-D (оптика) для GEF-DVI-8FO-S GEFEN GEF-DVI-1FO-R

The GefenPRO 8 DVI Extender over One Fiber Sender module can be installed in any one (or all) of the output slots on a GefenPRO Modular Matrix, allowing DVI signals to be extended up to 6600 feet (2000 meters). Use the GefenPRO DVI Extender over One Fiber Receiver unit to complete the connection to the display. ВОЗМОЖНОСТИ ПАРЫ ПРИЕМНИК-ПЕРЕДАТЧИК • Plug-in Sender module for GefenPRO Modular Matrix • Extends DVI up to: - 6600 feet (2000 meters) using 50м OM3e multi-mode fiber optic cable - 2000 feet (600 meters) using 50м OM3 multi-mode fiber optic cable - 660 feet (200 meters) using 62.5м OM1 multi-mode fiber optic cable • Supports resolutions up to 1920 x 1200 • EDID management provides rapid integration between sources and displays • LED Indicators for Power and Link Status • Firmware can be updated via RS-232 or Ethernet ports of a GefenPRO Modular Matrix ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ • Maximum Pixel Clock: 165 MHz МОДУЛЬ ПЕРЕДАТЧИКА: • Fiber Optic Connectors: (1) SC type per output (8 total) • Dimensions (W x H x D): 15.75” x 1” x 10.5” (400mm x 26mm x 267mm) • Shipping Weight: 2 lbs (0.9 kg) МОДУЛЬ ПНРИЕМНИКА: • Video Output Connector: (1) DVI-I, 29-pin, female (digital only) • Fiber Optic Connector: (1) SC type• Power Supply: 5V, locking • Power Consumption: 10W (max.) • Dimensions (W x H x D): 4.3” x 3.4” x 1.1” (110mm x 85mm x 28mm) • Shipping Weight: 1.4 lbs (0.64 kg) http://www.gefen.com/pdf/catalogs/infocomm_catalog.pdf
