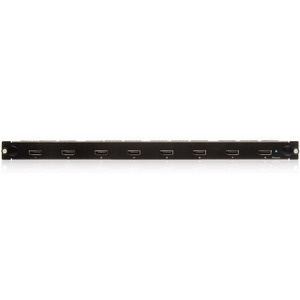

Плата входов DisplayPort x8 GEFEN GEF-MOD-8DP-I

MatrixesThe 8-input plug-in DisplayPort PCBA is part of the GefenPRO Modular Matrix system and can be installed in any one (or all) of the four available input slots on any GefenPRO Modular Matrix, allowing DisplayPort signals to be routed to multiple displays, through the matrix. ОСОБЕННОСТИ • Plug-in Input module for GefenPRO Modular Matrix • Supports Input Resolutions to 2560 x 1600 (WQXGA) • Supports Output Resolutions to 1920 x 1200 (WUXGA)• Supports both 1.62 Gbps and 2.7 Gbps data rates • EDID management provides rapid integration between source and display • Power Indicator LED • DisplayPort 1.1a compliant ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ • Output Data Rate: 2.7 Gbps (TMDS) • Input Video Signal: 1.2V p-p • Input Connectors: (8) DisplayPort, 20-pin, female • Dimensions (W x H x D): 15.75” x 1” x 10.5” (400mm x 26mm x 267mm) • Shipping Weight: 2 lbs (0.9 .kg) http://www.gefen.com/pdf/catalogs/infocomm_catalog.pdf
