Корпус модульного матричного коммутатора 16х16 GEFEN GEF-MOD-16416

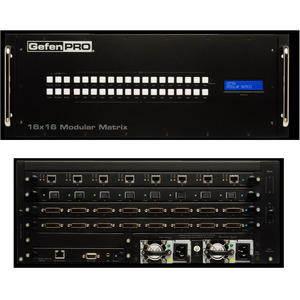

The GefenPRO 16x16 Modular Matrix System is a 19" main frame (4 HU), pre-equipped with: - front pannel with buttons and LC-display - two redundand hot-swappable power supplies - CPU-board incl. web server with RS-232 and LAN-interface - fan module - filter module - blanking plates - 2 slots for 8x input module - 2 slots for 8x output module The GefenPRO 16x16 Modular Matrix provides an all-in-one professional solution to route up to 16 DVI or DisplayPort sources to any 16 DVI outputs supporting resolutions up to 1920 x 1200.The modular design of this 16x16 matrix provides the ultimate in flexibility by allowing the use of any combination of DVI, ELR, or 1FO output modules in any of its two output slots. This feature allows the GefenPRO 16x16 Modular Matrix to output DVI to local and extended locations. The front-panel LCD displays the current routing status and each source is accessible to any display by using the front-panel push buttons, or the RS-232 interface, or through IP Control (with built-in web server and Telnet). Hot-swappable dual redundant power supplies allow these matrixes to be used for applications in demanding 24/7 applications where enhanced reliability, ease of servicing and zero down-time are required. ОСОБЕННОСТИ -Supports resolutions up to 1920 x 1200 -Advanced EDID management for rapid integration of sources and displays -Built-in web server and Telnet control via IP -Routing states can be stored and recalled at the touch of a button -Output masking command -Standby mode -Power ON / OFF switch -Rack-mountable
