OVERVIEW

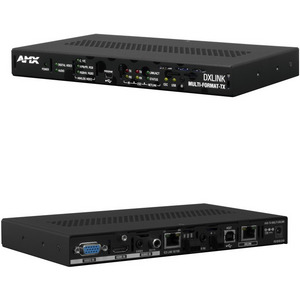

The DXLink Multi-Format Transmitter sends analog and digital audio and video signals including HDMI/HDCP, control, and Ethernet up to 100 meters over one standard twisted pair cable. The DXLink Transmitter can also be used as a point-to-point solution with a DXLink HDMI Receiver. The DXLink Transmitter can be powered from any DXLink power source such as the Enova DGX DXLink Twisted Pair Input Board or the Enova DVX-3155HD or DVX-2155HD, and it also includes a local power supply for point-to-point use with a stand-alone receiver. The transmitter features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.
COMMON APPLICATIONS
The DXLink Multi-Format Transmitter sends analog or digital video, audio and control to a remote display across the room, on the other side of the house or to a classroom down the hall. The transmitter's built-in control ports can be used to control a source and the ICSLan port provides an IP access point.
FEATURES
•Only One Cable – Send audio and video while passing control, Ethernet, USB signals and power
•Native NetLinx® Control Everywhere – Control connected source and display devices using the built-in IR and RS-232 ports
•Send HDMI signals up to 100 meters – Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
•Multi-Format Analog Port and HDMI Port – Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
•Standard Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
