Плата входная для Enova DGX AMX DGX-I-DXL, FG1058-570

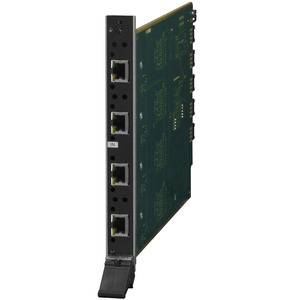

OVERVIEW The AVS-ENOVADGX32-VI-DXLINK is a HDCP compliant twisted pair cable input board for the Enova DGX 16 and Enova DGX 32. It has four connections per board designed to receive audio and video from DXLink Transmitters while passing bi-directional control and Ethernet signals over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Input Board to power DXLink Transmitters. COMMON APPLICATIONS The Enova DGX DXLink Twisted Pair Input Board is ideal for applications where source devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment. FEATURES •Only One Cable – Receive audio and video while passing control, Ethernet and power over one twisted pair cable •Send HDMI signals up to 100 Meters – Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling •Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details •Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards •HDCP Compliant
