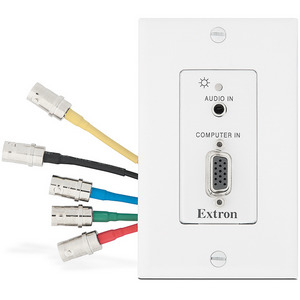

Удлинитель VGA EXTRON Extender Plus D, 60-1261-22

Extender Plus VGA and Audio Line Driver with EDID Minder® •Inputs: Video on female 15-pin HD for video and audio on 3.5 mm mini stereo jack •Outputs: Video on female BNC for video and audio on captive screw connector •Extends VGA signals up to 250 feet (75 meters) over Extron MHR Mini High Resolution cable •400 MHz (-3 dB) RGB video bandwidth •Supports PC resolutions up to 2048x1536 and HDTV component video signals •EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display. •EDID capture mode — When connected to a display, the Extender Plus offers the option of capturing and then storing EDID information from the display device. •Selectable resolutions and refresh rates — Pre-stored EDID is communicated to the source based on a user-selected resolution and refresh rate. •Three-position peaking/gain control helps maintain video signal integrity over long cable runs — Boosts and equalizes video signals to compensate for signal loss and high frequency attenuation that occur in long cable runs. •Restores low level sync to TTL level •Active PC audio interfacing converts unbalanced audio to balanced line level audio •LED indicators for EDID status, signal presence, and power — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters. •Choice of Decora-style or AAP – Architectural Adapter Plate form factors — Available as a single-gang Decora-style wallplate, which fits standard US-gang wall boxes, or as a double-space AAP for use in Cable Cubby® enclosures or other AAP mounting frames. •Energy-efficient external universal power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.
