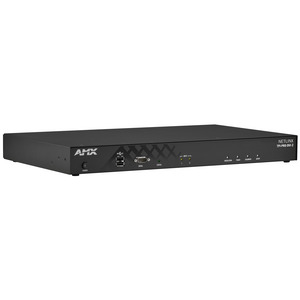

Видеопроцессор аннотационный AMX TPI-PRO-DVI-2, FG2275-112

MEMORY •256 MB SDRAM •256 MB disk memory INPUT FORMAT •Composite, S-Video, Component, RGBHV, DVI •640 x 480 @ 60 Hz up to 1920 x 1200 @ 60 Hz OUTPUT FORMAT •RGBHV, DVI Up to 1920 x 1200 @ 60 Hz FRONT COMPONENTS •DB9 RS-232 Serial Configuration Port •2 USB Type-A ports for connecting up to one annotation touch monitor and up to one keyboard/mouse •LED Indicators - PWR, NetLinx Master status, and 2 yellow LEDs for each source input •Pushbuttons - RESOLUTION, TOUCH, CALIBRATE, and SETUP •Pushbutton - Power REAR CONNECTORS •DVI-I connectors - 2 input sources •2 USB Type-B ports for source mouse/keyboard control •DB9 RS-232 touch input connector for serial touch overlays •2 USB Type-A ports for USB touch overlays (can also be used for keyboard and mouse control) •2 DVI Output connectors to send out a maximum resolution of 1920 x 1200 @ 60 Hz •1 RJ-45 Ethernet port for network control •3.5 mm mini-jack for audio output •1 2-pin, 3.5 mm screw terminal connector for 12 V power ENCLOSURE Metal with black matte finish SPECIFICATIONS: DIMENSIONS (HWD): 4.4 cm x 43.2 cm x 26.8 cm, RU: 1 WEIGHT: 3.74 kg POWER: Constant current draw: 2.6 A @ 12 VDC ENVIRONMENTAL •Operating Temperature: 0° C to 40° C •Operating Humidity: 5% to 85% RH Non-Condensing •Storage Temperature: -10° C to 70° C •Storage Humidity: 0% to 85% RH Non-Condensing INCLUDED ACESSORIES •2-pin PWR connector (41-5025) •Assembly Kit (Four- #10-32 screws and Four-#10 washers) (KA0001) •TPI-PRO Quick Start Guide (93-2275-101) •Rack Ear brackets (Left/Right) for shelf, wall, and under-table mounting (60-0900-03)
