Панель селектора каналов TELEVIC ODCSA5500, 71.68.5151

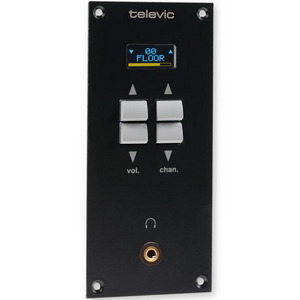

ODCSA5500 - Delegate channel selector The ODCSA5500 Delegate Channel Selector is a listening unit specifically designed for mounting in an armrest. It allows delegates to select the appropriate language channel with the up and down controls. This selection is automatically limited to the number of available channels. An easy-to-read OLED display indicates the selected channel number and the volume level when the volume controls are used. Using the PC software, names (i.e. ISO language codes) can be assigned to the different channels and displayed on the display. The channel selector remains inactive until the volume or channel selection controls are used. The language selector is by default set to the floor channel (or another predefined channel), and the volume is automatically set to a predefined level. ПАРАМЕТРЫ •Up to 60 audio channels supported •Automatic wake-up upon first use or on request of central control with preset channel selection and volume level •Easy to read OLED display shows the selected channel number, its corresponding name and a volume bar •Up and down controls for channel selection and volume control •Maximum number of channels programmable from central control •Automatic channel rollover to channel zero when the maximum number of channels is reached •Automatic entering of “sleep mode” on request of central control •General device reset on request of central control РАЗЪЕМЫ •Two 8-pin shielded modular RJ45 jacks for daisy-chain wiring •3.5 mm jack connector for headphones •The ODCSA connects in daisy chain wiring to an SPL5525
