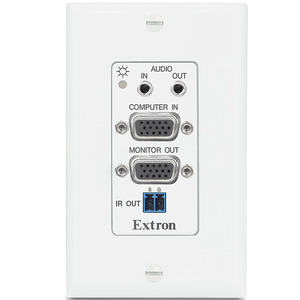

PVT RGB D Plus
PoleVault VGA Video and Stereo Audio Input with Local Monitor Output - Decora® Wallplate
The PVT RGB D Plus VGA Video and Stereo Audio Input is designed to work exclusively with a PoleVault Switcher as part of the PoleVault® or WallVault® System. The PVT RGB D Plus accepts a VGA computer-video signal on a female 15-pin HD connector and stereo audio on a 3.5 mm stereo mini jack. It also includes a built-in distribution amplifier with a female 15-pin HD connector that supports a local monitor. An IR pass-through provides control connections for DVD/VCR players, tuners, switchers, or other IR controllable devices. The 3.5mm audio pass-through connector provides audio for recording, podcasting, and assistive listening systems. Extron-exclusive EDID Minder® technology is included for managing Extended Display Identification to ensure that the source device outputs at the appropriate resolution.
ПАРАМЕТРЫ
•Available exclusively as part of a PoleVault® or WallVault® System
•Transmits VGA computer video and stereo audio signals to a PoleVault switcher over two CAT 5-type cables
•Vertically mounted RJ-45 output connectors eliminate bend radius and depth issues for in-wall installations
•Built-in distribution amplifier provides local monitor output
•EDID Minder® automatically manages EDID communication between connected devices
— EDID Minder ensures that all sources power up properly and reliably output content for display.
•IR pass-through provides control connections for DVD/VCR players, tuners, switchers, or other IR controllable devices
•Audio pass-through supplies PoleVault audio content to podcasting or assistive listening systems
•Mounts in an included Decora-style wallplate
•One-gang mud ring included
