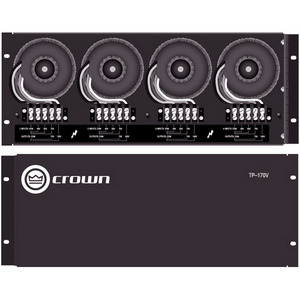

Панель рэковая: 4 трансформатора согласующих (усилитель - колонки) CROWN TP-170V

The Crown® TP-170V is a rack-mountable panel with autoformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70 V or 100 V output capability to drive distributed speaker systems designed to operate at those voltages. It provides 100 V output in Dual mode when used with CTs 600, CTs 1200, CTs 4200 and CTs 8200 amplifiers, and allows other amplifiers without direct Constant-Voltage capability to be easily integrated into distributed systems. The TP-170V is constructed of sturdy steel, and hinged on one side to allow easy access to the inside connections. ПАРАМЕТРЫ - Output connectors: One five-pole terminal strip per channel with touch-proof cover. Accepts up to 10 AWG terminal forks - Frequency Response: +/- 0.5 dB (20 Hz to 20 kHz) - Insertion (Core) Loss: 0.41 dB max (70 VAC at 50 Hz) - Dimensions: 19 in (48.3 cm) wide (including hinge), 7.23 in (18.4 cm) high, 1.45 in (3.7 cm) deep - Weight: 12.75 lbs (5.78 kg)
