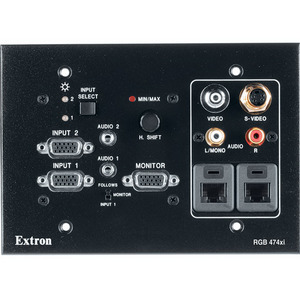

Интерфейс компьютер - монитор, 2-входа, EXTRON белый, RGB 474xi, 60-519-03

RGB 474xi Two Input Architectural Interface for Three-Gang Wall Box ПАРАМЕТРЫ •Input: RGB video on two female 15-pin HD connectors; audio on two 3.5 mm stereo mini jacks •Output: RGB video on two female 5-BNC pigtails; audio on two captive screw connectors •300 MHz (-3 dB) RGB video bandwidth •Compatible with computer-video resolutions up to QXGA •Buffered local monitor output •ADSP™ - Advanced Digital Sync Processing — An exclusive Extron technology that conditions sync signals to provide reliable operation with a variety of signal sources and display types. ADSP reshapes the sync signals, restores proper TTL voltage levels, and maintains the original video to sync timing relationships while allowing centering control. •DDSP™ - Digital Display Sync Processing — Allows the sync signal to pass through without altering sync pulse or width. Disables other sync processing features such as horizontal and vertical centering. •Three-position level/peaking control — Boosts and equalizes video signals to compensate for signal loss and high frequency attenuation that occur in long cable runs. •Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering". •Two memory settings for centering and horizontal shift control •Active PC audio to balanced audio interfacing — Converts computer-generated, unbalanced audio to balanced line level stereo audio for output on a captive screw connector and two female RCA connectors. •Selectable stereo or summed mono audio output •Includes composite video pass-through connector, RCA to BNC, S-video pass-through connector, 4-pin mini DIN female to female, active stereo/mono, unbalanced to balanced stereo audio driver, and RJ-45 connector for network, data, and phone transmissions •Contact closure remote control •Available in black or white •Energy-efficient external universal power supply included, replacement part # 70-775-01 •Installs in US three-gang wall box
