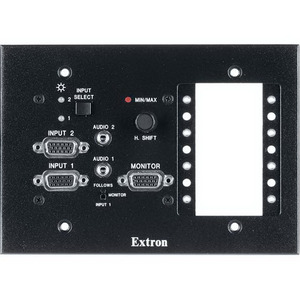

Интерфейс компьютер - монитор, 2-входа, окно MAAP х 4, EXTRON RAL9010, RGB 478Mxi, 60-592-05

RGB 478 Mxi Two Input Architectural Interface with MAAP Opening for Three-Gang Wall Box ПАРАМЕТРЫ •Input: RGB video on two female 15-pin HD connectors; audio on two 3.5 mm stereo mini jacks •Output: RGB video on two female 5-BNC pigtails; audio on captive screw connector •300 MHz (-3 dB) RGB video bandwidth •Compatible with computer-video resolutions up to QXGA •Buffered female 15-pin HD local monitor output •ADSP™ - Advanced Digital Sync Processing •DDSP™ - Digital Display Sync Processing — Allows the sync signal to pass through without altering sync pulse or width. Disables other sync processing features such as horizontal and vertical centering. •Three-position level/peaking control — Boosts and equalizes video signals to compensate for signal loss and high frequency attenuation that occur in long cable runs. •Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering". •Two memory settings for centering and horizontal shift control •Active PC audio to balanced audio interfacing — Converts computer-generated, unbalanced audio to balanced line level stereo audio for output on a captive screw connector. •Selectable stereo or summed mono audio output •Opening for four MAAP - Mini Architectural Adapter Plates, MAAPs sold separately — There are over 100 MAAP models available to meet virtually any signal connection requirement. •Contact closure remote control •Available in black or RAL9010 •Energy-efficient external universal power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs. •Installs in US three-gang wall box
