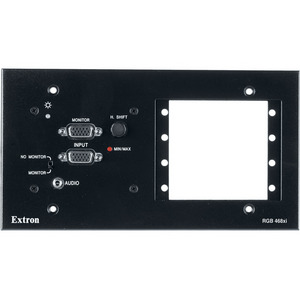

Интерфейс компьютер - монитор, окно AAP х 4, EXTRON белый, RGB 468xi, 60-375-03

RGB 468xi Архитектурный интерфейс для установки в четырехпозиционный монтажный бокс с отверстием для плат архитектурного адаптера (AAP) ПРРАМЕТРЫ - Устанавливается в стенной четырехпозиционный мотажный бокс - Разъемы для четырех AAP - плат архитектурных адаптеров, которые продаются отдельно - Input: RGB video on female 15-pin HD connector; audio on 3.5 mm stereo mini jack - Output: RGB video on female 5-BNC pigtail; audio on captive screw connector - 300 MHz (-3 dB) RGB video bandwidth - Compatible with computer-video resolutions up to QXGA - Buffered local monitor output - ADSP™ - Advanced Digital Sync Processing - DDSP™ - Digital Display Sync Processing — Allows the sync signal to pass through without altering sync pulse or width. Disables other sync processing features such as horizontal and vertical centering. - Three-position level/peaking control — Boosts and equalizes video signals to compensate for signal loss and high frequency attenuation that occur in long cable runs. - Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering". - Active PC audio to balanced audio interfacing — Converts unbalanced PC audio to balanced line level audio for output on a captive screw connector. - Opening for four AAP - Architectural Adapter Plates — Extron offers a wide selection of active and passive AAPs with audio, video, phone, data, power, and control connectors, that fit together for attractive and completely customizable AV connectivity. AAPs sold separately. - Available in black, white or RAL9010 - Energy-efficient external universal power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs. - Installs in US four-gang wall box
