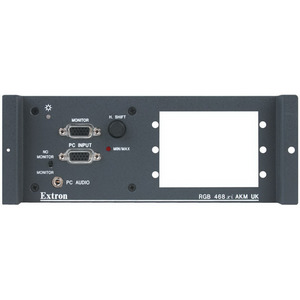

Интерфейс компьютер - монитор для напольных боксов Ackerman EXTRON RGB 468xi AKM, 60-626-02

RGB 468xi AKM Architectural Interface with AAP Opening for AKM - Ackermann Floor Box ПАРАМЕТРЫ - Input: RGB video on female 15-pin HD connector; audio on 3.5 mm stereo mini jack - Output: RGB video on female 5-BNC pigtail; audio on captive screw connector - 300 MHz (-3 dB) RGB video bandwidth - Compatible with computer-video resolutions up to QXGA - Buffered local monitoring output - ADSP™ - Advanced Digital Sync Processing - DDSP™ - Digital Display Sync Processing — Allows the sync signal to pass through without altering sync pulse or width. Disables other sync processing features such as horizontal and vertical centering. - Three-position level/peaking control — Boosts and equalizes video signals to compensate for signal loss and high frequency attenuation that occur in long cable runs. - Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering". - Active PC audio to balanced audio interfacing — Converts computer-generated, unbalanced audio to balanced line level stereo audio for output on a captive screw connector. - Opening for three AAP - Architectural Adapter Plates, AAPs sold separately — Extron offers a wide selection of active and passive AAPs with audio, video, phone, data, power, and control connectors, that fit together for attractive and completely customizable AV connectivity. AAPs sold separately. - Energy-efficient external universal power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs. - Designed for installation in Ackermann CRX 4090 and CRX 4120 floor boxes — Fits flush for convenient and easy installation in the AKM - Ackermann floor box system. Floor boxes sold separately.
