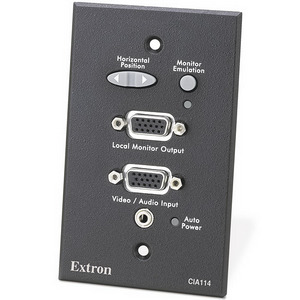

Интерфейс компьютер - монитор, EXTRON черный, CIA114, 60-597-12

CIA114 Architectural Interface for One-Gang Wall Box - Input: RGB video on female 15-pin HD connector; audio on 3.5 mm stereo jack - Output: RGB video on female 5-BNC pigtail; audio on captive screw connector - 250 MHz (-3 dB) RGB video bandwidth - Compatible with computer-video resolutions up to UXGA - Buffered local monitor output - Variable peaking — A means of compensating for mid- and high-frequency RGB video bandwidth response and for signal losses resulting from cable capacitance. The higher the frequency and the greater the cable length, the more peaking may be required. - Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering". - Video hum suppression, differential input - One-button monitor emulation - Active PC audio to balanced audio interfacing — Converts computer-generated, unbalanced audio to balanced line level stereo audio for output on a captive screw connector. - Auto power on/off - Available in black, white or RAL9010 - Energy-efficient external universal power supply included, replacement part # 70-774-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs. - Installs in US one-gang wall box
