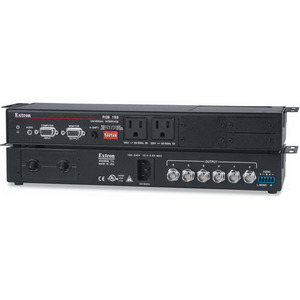

Интерфейс универсальный компьютер-монитор EXTRON RGB 198 EU, 60-674-02

Under-Table & Rack-Mountable Computer-Video Interface with Audio & MAAP Openings RGB 198 ПАРАМЕТРЫ - Input: RGB video on female 15-pin HD connector; audio on 3.5 mm stereo mini jack - Output: RGB video on female BNC connectors for RGBHV, RGBS, or RGsB; audio on captive screw connector - 300 MHz (-3 dB) RGB video bandwidth - Compatible with computer-video resolutions up to QXGA - Buffered local monitor output - DDSP™ - Digital Display Sync Processing, DIP switch-selectable — Allows the sync signal to pass through without altering sync pulse or width. Disables other sync processing features such as horizontal and vertical centering. - Two-position level/peaking control — Boosts and equalizes video signals to compensate for signal loss and high frequency attenuation that occur in long cable runs. - Horizontal shift control — Shifts the displayed image left or right on the display screen. Also called "horizontal centering". - Active PC audio to balanced audio interfacing — Converts computer-generated, unbalanced audio to balanced line level stereo audio for output on a captive screw connector. - Selectable stereo or summed mono audio output - Mounts under table, podium, or other flat surface — Mounting brackets provided; also available optional through-desk mounting kit, or mounts in 1U rack space using optional rack shelf. - Openings for up to four MAAP - Mini Architectural Adapter Plates — Extron MAAPs are compact mountable metal plates that provide pass-through connectors and control modules to maintain a clean and efficient AV system design. MAAPs sold separately. - Two front panel unswitched AC outlets - Edison USA — RGB 198: Edison USA; RGB 198 EU: Europlug. - Available in black to match Extron MAAP - Mini Architectural Adapter Plates - Internal universal power supply - 1U, three quarters rack width metal enclosure
