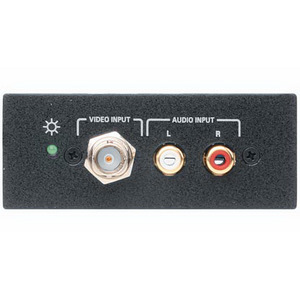

Интерфейс EXTRON AAP. усилитель CV + аудио CVEQ1 AAP серый, 70-146-02

CVEQ1 AAP and CVEQ1 WM Composite Video and Audio Line Driver with Gain and Equalization - Wall-Mountable The Extron CVEQ1 AAP and CVEQ1 WM are one input, one output, composite video and stereo audio line drivers with variable video gain and equalization capability. Both models are designed to compensate for signal attenuation and high frequency loss encountered during a long cable run. The gain adjustment compensates for signal level losses, while the peaking/equalization adjustment compensates for high frequency loss. The CVEQ1 AAP and CVEQ1 WM provide active audio buffering with a choice of balanced or unbalanced outputs. ПАРАМЕТРЫ •Inputs: Female BNC and RCA connectors •Outputs: Female BNC and captive screw connector •185 MHz (-3 dB) video bandwidth •Compatible with NTSC, PAL, SECAM, and stereo audio •Peaking/equalization and gain controls •Active audio buffering •Wall mount and AAP models •AAP models install in products that accept a double space AAP - Architectural Adapter Plate •WM models install in a one-gang wall box •Audio response: 20 Hz to 20 kHz (± 0.05 dB) •Available in gray or RAL9010 White •Energy-efficient external universal power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.
