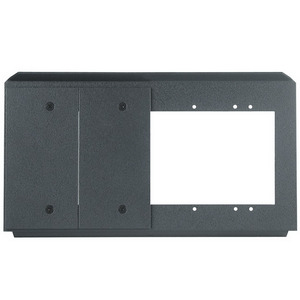

Комплект монтажный для Steel City® AFM 2 Floor Boxes EXTRON SC-AFM 8 Mounting Kit, 70-203-01

SC-AFM 8 Mounting Kit Mounting Kit for Steel City® AFM 8 Floor Boxes The Extron SC-AFM 8 is a mounting kit for Steel City® AFM8 floor boxes. It can accommodate any Extron four-gang, three-gang, two-gang, or one-gang faceplate. With added flexibility, the SC-AFM 8 supports such products as the Extron RGB 460xi, RGB 464xi, or RGB 468xi interfaces, as well as the Extron TP T 460 Architectural Twisted Pair Interface Transmitter and assorted Extron AAP - Architectural Adapter Plates. ПАРАМЕТРЫ •Inputs: RGB video on two female 15-pin HD connectors; audio on two 3.5 mm stereo mini jacks •Output: RGB video on female 5-BNC pigtail; audio on captive screw connector •Universal, analog computer-video interface •Compatible with VGA-QXGA, Mac, Sun®, and SGI® computers •300 MHz (-3 dB) RGB video bandwidth •ADSP™ - Advanced Digital Sync Processing •Active PC audio to balanced audio interfacing •Two memory settings for centering and horizontal shift control •Buffered female 15-pin HD local monitor output •External universal power supply included, replacement part # 70-775-01 •Faceplates specially designed to mount in Steel City floor boxes •Accommodates any Extron one-, two-, three-, or four-gang faceplate •Supports Extron RGB 470xi, RGB 474xi, or RGB 478xi interfaces, and assorted AAP - Architectural Adapter Plate frames •Mounts in Steel City® AFM 8 floor box •Includes two blank filler panels
