Передатчик по витой паре EXTRON VGA, CV и аудио (для PoleVault,WallVault), белый PVT RGB CV MK, 60-944-23
/shoptvdscr?goodsid=17024
17024
Код 17024
Запрос цены
Товар отсутствует в продажеТовар сейчас отсутствует в продаже, Вы можете самостоятельно подобрать аналог этой модели из приведенных ниже вариантов или связаться с нами. Наш менеджер обязательно поможет определиться с выбором.

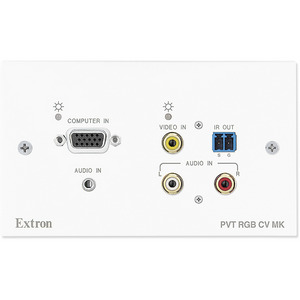

PVT RGB CV MK
PoleVault VGA, Composite Video and Stereo Audio Input - MK Wallplate
The PVT RGB CV MK VGA Video, Composite Video, and Stereo Audio Input is designed to work exclusively with the PVS 204SA Four Input Twisted Pair Switcher as part of a PoleVault® or WallVault® System. The two input PVT RGB CV MK accepts VGA computer-video with stereo audio and composite video with stereo audio and transmits the signals to the switcher on one or two twisted pair cables.
All PVT Series inputs can be used with any CAT 5, 5e, or 6 twisted pair cable or Extron Enhanced Skew-Free™ AV UTP cable.
The PVT RGB CV MK can be powered by the PVS 204SA switcher via the twisted pair cable, features an LED power indicator for easy troubleshooting, and provides active balanced transmissions for both video and audio. The PVT RGB C
ПАРАМЕТРЫ
- Available exclusively as part of a PoleVault® or WallVault® System
- Transmits VGA computer video, composite video, and stereo audio signals to a PoleVault Switcher over three CAT 5 UTP cables
- Two input model
- Designed to mount in a 47 mm deep double MK junction box for UK, Singapore, Hong Kong and other markets that use MK-type junction boxes
