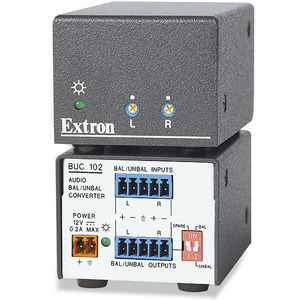

Конвертер баланс/небаланс и небаланс/баланс аудио EXTRON BUC 102, 60-651-01

BUC 102 Two Channel Audio BUC - Balanced and Unbalanced Converter The Extron BUC 102 Balanced and Unbalanced Audio Converter provides signal matching between unbalanced and balanced audio equipment. In addition to serving as an interface between professional AV systems and consumer products, the BUC 102 is a high-quality line driver for sending and receiving audio signals over long distances. Inputs and outputs for the BUC 102 are on captive screw connectors. User controls include variable gain adjustments and a gain compensation switch to maintain consistency between consumer and professional audio levels. The small, economical, integrator friendly BUC 102 is housed in a 1U, one-eighth rack width metal enclosure. ПАРАМЕТРЫ - Inputs: Captive screw connectors - Outputs: Captive screw connectors - Provides signal matching between unbalanced and balanced audio equipment — The BUC 102 enables correct interfacing of consumer and professional equipment with proper gain offsets. - Audio line driver — Active, op amp-based circuitry provides wide frequency response, low noise, immunity to interference - EMI, and the ability to drive signals over long cables. - Allows transmission of balanced audio signals up to 1,000 feet (300 m) through Extron STP20 cable - Gain control for each channel with a wide adjustment range from -80 dB to +20 dB — Two front panel rotary trim pots provide level adjustment for each input. - Gain compensation switch for interfacing between professional AV systems - Rack-mountable 1U, one-eighth rack width metal enclosure - Energy-efficient external universal power supply included, replacement part # 70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.
