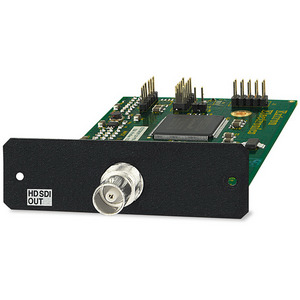

Плата выходная EXTRON HD-SDI для Annotator & USP 507 HD-SDI Output Board, 70-559-02

SDI/HD-SDI I/O Boards SDI/HD-SDI Input and HD-SDI Output Boards for the ISS 506, Annotator, and USP 507 The Extron SDI/HD-SDI Input Board and HD-SDI Output Board add SDI and HD-SDI input and output capability to the Extron ISS 506, Annotator, and USP 507. The SDI/HD-SDI input board enables them to accept SDI or HD-SDI signals. The HD-SDI output board enables the ISS 506, Annotator, and USP 507 to output SMPTE 292M HD-SDI signals. ПАРАМЕТРЫ - SDI/HD-SDI input board enables the ISS 506, Annotator, and USP 507 to accept SDI or HD-SDI - Serial Digital Interface signals - supports SMPTE 259M and SMPTE 292M standards - HD-SDI output board enables the ISS 506, Annotator, and USP 507 to output HD-SDI signals at 720p, 1080i, or 1080p up to 30 Hz - supports SMPTE 292M standard
