Блок пассивного объединения помещений TELEVIC PRC5500, 71.61.5092, 71.67.5092

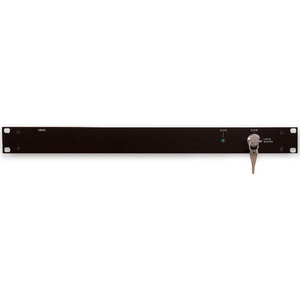

PRC5500 - Passive room coupling unit The PRC5500 Passive Room Coupling Unit allows coupling of two conference rooms. The coupling is passive, so only the interpreter channels from the master room will be shared by the two rooms. The floor channel in both rooms will be shared. Coupling is performed by a key switch, placed at the front of the panel. Features •2 position key switch: ‘Local Master’ and ‘Slave’ position •Green ‘Slave’ LED Connectivity •Two 8-pin RJ45 connectors for connection to CE5500 Master room (TMS & Clock) •Two 8-pin RJ45 connectors for connection to CE5500 Slave room (TMS & Clock) •One Phoenix power supply connector (48 V DC in) •Two 8-pin RJ45 connectors for connection to Slave room Extension Units (TMS & Clock)
