Блок программируемых аналоговых входов/выходов TELEVIC PIO5500, 71.61.5244, 71.67.5244

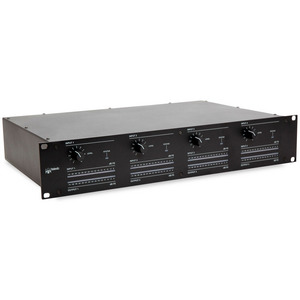

PIO5500 Блок программируемых входов/выходов : 4x XLRF programmable Inputs with VU-indication and volume control, 4x XLRM programmable Outputs with VU-indication and volume control 71.61.5244 PIO5500 - Programmable Analog Input-Output Panel The PIO5500 Programmable Analog Input Output Panel provides four analog input and four double analog audio output signals (input to a recorder, mixing panel, etc). It has eight 14 segments LED Bar VU meters. All inputs, outputs and VU meters are fully programmable, using the TCS5500 IM software package. Several PIO5500 units can be daisy-chained allowing a virtually unlimited number of programmable analog input/outputs. Features •Four rotary volume controls for adjustment of the input signals •Four input signal status LEDs (indicating Off, Mixing or On status) •Four 14 segments LED Bar VU meters, programmed to follow the input signals •Four 14 segments LED Bar VU meters, programmed to follow the output signals Connectivity •Four XLRM connectors for analog output (transformer balanced) •Four secondary XLRM output connectors, carrying the same signals as the first ones, but galvanically isolated (transformer balanced) •Four XLRF connectors for analog input (transformer balanced) •Two RJ45 connectors for the digital bus (TIS digital network)
