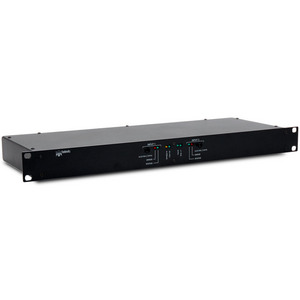

Блок цифровых входов/выходов TELEVIC DIOP5500, 71.61.5200, 71.67.5200

DIOP5500 Блок цифровых входов/выходов: 2x digital audio input (mono) AES/EBU or S/PDIF, 4x digital audio output (mono) AES/EBU or S/PDIF 71.61.5200 DIOP5500 - Digital Input-Output Panel The DIOP5500 Digital Input Output Panel provides four (mono, L=R) digital AES/EBU or four digital SP/DIF audio output signals. These can be used as input for a recorder, mixing panel, etc. The unit also accepts two (stereo – 2 separate channels) digital AES/EBU or two digital SP/DIF audio inputs (ex. output of a CD-player). All inputs and outputs can be optical or copper. Several DIOP5500 units can be daisy-chained allowing a virtually unlimited number of digital audio outputs. Features •Indicator LEDs for system clock and power •Two switches for selection Optical/Electrical •Four XLRM connectors for AES/EBU output •Four output ST connectors for multimode fiber (62.5/125 µm) connection •Two XLRF connector for AES/EBU input •Two input ST connectors for multimode fiber (62.5/125 µm) connection •Two RJ45 connectors for the digital bus (TIS digital network)
