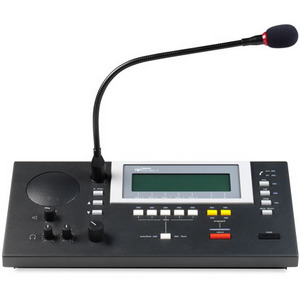

Пульт переводчика TELEVIC с микрофоном TGM407, ID5500, 71.64.5044

ID5500 - Digital interpreter station The ID5500 Interpreter Desk features a unique and attractive design. It is supplied in a professional all metal housing, and conforms to all relevant international norms. All interpreter desks are identical and interchangeable in case of malfunction. A malfunction in one interpreter desk has no influence on the operation of any other interpreter desk in the system. The ID5500 offers easy and intuitive operation and can accommodate the floor language plus 58 languages. Up to 15 interpreter desks can be installed per booth. An integrated alphanumerical LCD display indicates information relevant to the interpreter. Interpreters can easily select the incoming languages of their choice by using the 5 relay preset buttons with red indicator LED. These buttons are easily programmed by pressing and holding the relay preset button and cycling through the available language channels on the LCD display with the up and down controls. Releasing the relay preset button programs the selected language. The relay preset is activated by pressing the white relay button with green LED indicator. Interpreters get an indication on the LCD display of the quality of the incoming languages. This way they can distinguish between a direct and an indirect interpretation, thereby avoiding indirect interpretations whenever possible. Connectivity •5-pin XLR female connector for removable gooseneck microphone •2 RJ45 8-pin connectors (digital bus: IN and OUT) •3,5mm jack socket for headphones •3,5mm jack socket for external microphone •Headset socket •7-pin DIN connector for headset •1 RJ45 8-pin connector for connection to peripheral devices: •Activation of EXT and INT LED on desk via telephone indicator board (71.69.5528) •Driving of ‘On-Air’ indicator light via driver board (71.69.5522)
