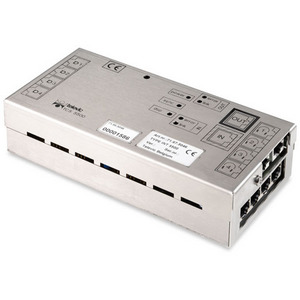

Модуль аудиоинтерфейса TELEVIC (4 вх / 4 вых) INT5500, 71.67.5046

INT5500 - Delegate Controller Interface The Delegate Controller Interface INT5500 allows connection of 4 delegate microphone units and 4 delegate channel selectors, voting panels or loudspeaker panels. The controller interfaces are connected to the central unit in daisy chain. Replacement of a defective interface can be effected without shutting down the system (“hot swapping”) Features •Four 10-pin RJ connectors for microphone units DML5500/CML5500 •Four 8-pin shielded RJ connectors for delegate channel selectors, loudspeakers LS5500 or for voting panels •Two 8-pin RJ connectors for the TMS digital data bus
