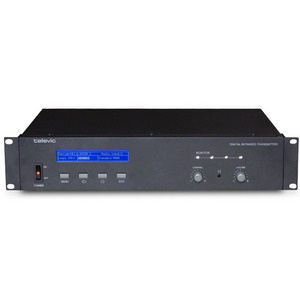

Передатчик ИК 8-канальный цифровой TELEVIC Aladdin T8, 71.98.0211

Aladdin T8 - 8-канальный цифровой ИК передатчик - сердце ИК системы распределения языков. Соответствует стандартам IEC 61603-7 и IEC 60914. Это означает, что он годиться для использования с другим оборудованием, также соответствующим этим стандартам. Aladdin T8 - 8-channel digital infrared transmitter The Aladdin 8 channel IR transmitter is the heart of an infrared language distribution system and is compliant to the IEC 61603-7 and IEC 60914 standard. This means it can be used with other equipment compliant to these standards. The 8 RCA phono plugs, inserting external asymmetrical audio signals, are modulated and transmitted to the radiator(s) in the conference room. Sensitivity of each input can be adjusted enabling fine tuning of audio levels. Each of the audio channels can be assigned with a language name for easy identification. The radiator has four BNC output connectors providing signal to the radiator(s). Each output can drive up to 30 radiators with a maximum cable length of 900m. In bypass mode the BCN input connector takes signals from another transmitter allowing multiple rooms to be used. Activating the auxiliary mode during breaks will provide music to all channels. When the transmitter is connected to an emergency system that becomes active, an alarm signal will be fed to all channels. The built-in infrared emitters for audio monitoring and test generator are usefull features for system setup and debugging. Features •On/Off switch •Configuration via LCD display •Language name assignment for each audio channel •Adjustable input sensitivity •Bypass mode allowing multi room configurations •Emergency signal interface •Music mode •Build-in emitter for audio monitoring Connectivity •4 BCN outputs •1 BNC input •2 XLR M inputs •8 RCA phono connectors •Emergency switch Габариты в упаковке (ДхШхВ): 530 х 420 х 200 мм
